| ltems | Standard | |
| Ambient Temper. Used | -40℃ to +125℃ | |
|
Electrical performance |
Rating | 5A 125/250VAC |
| Insulation resistance | 100MΩ min.500V DC | |
| Withstand Voltage | AC1500V 1min. | |
| Contact resistance | 100mΩ max. | |
|
Mechanical performance |
Operating force | 200gf MAX |
| Durability | Electrical Life | 500,000 Cycles |
| Mechanical Life | 1000,000 Cycles | |

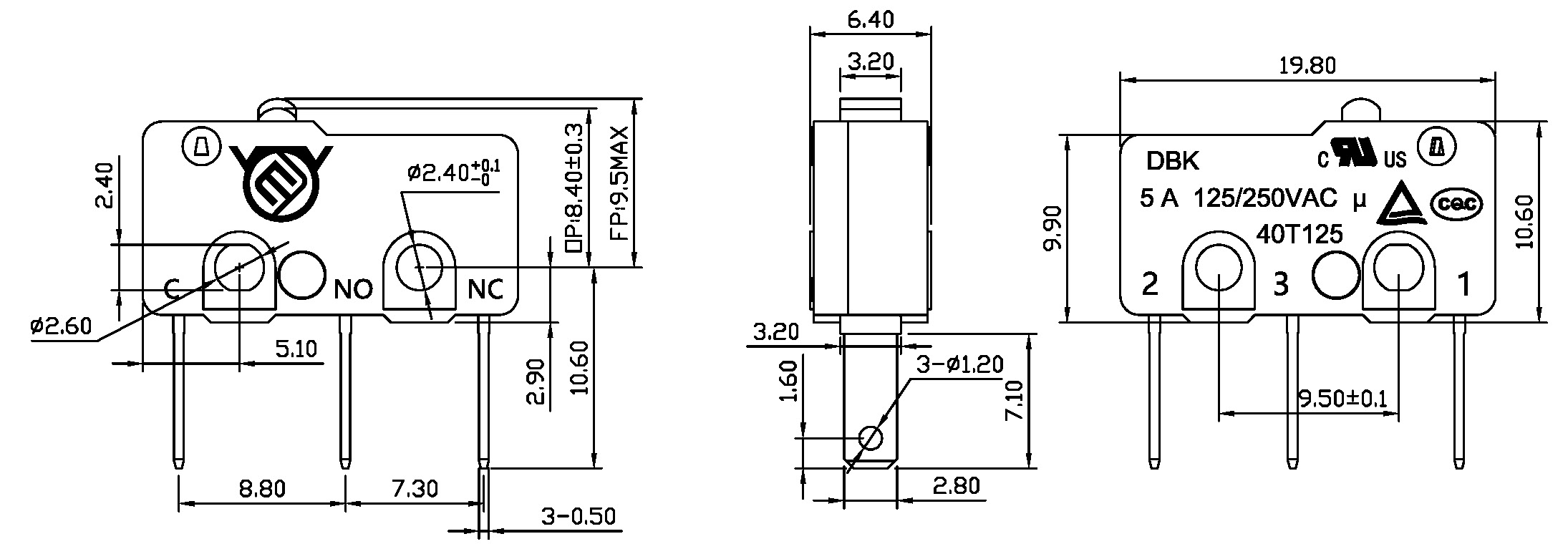

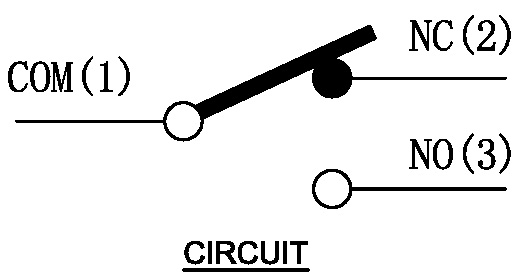

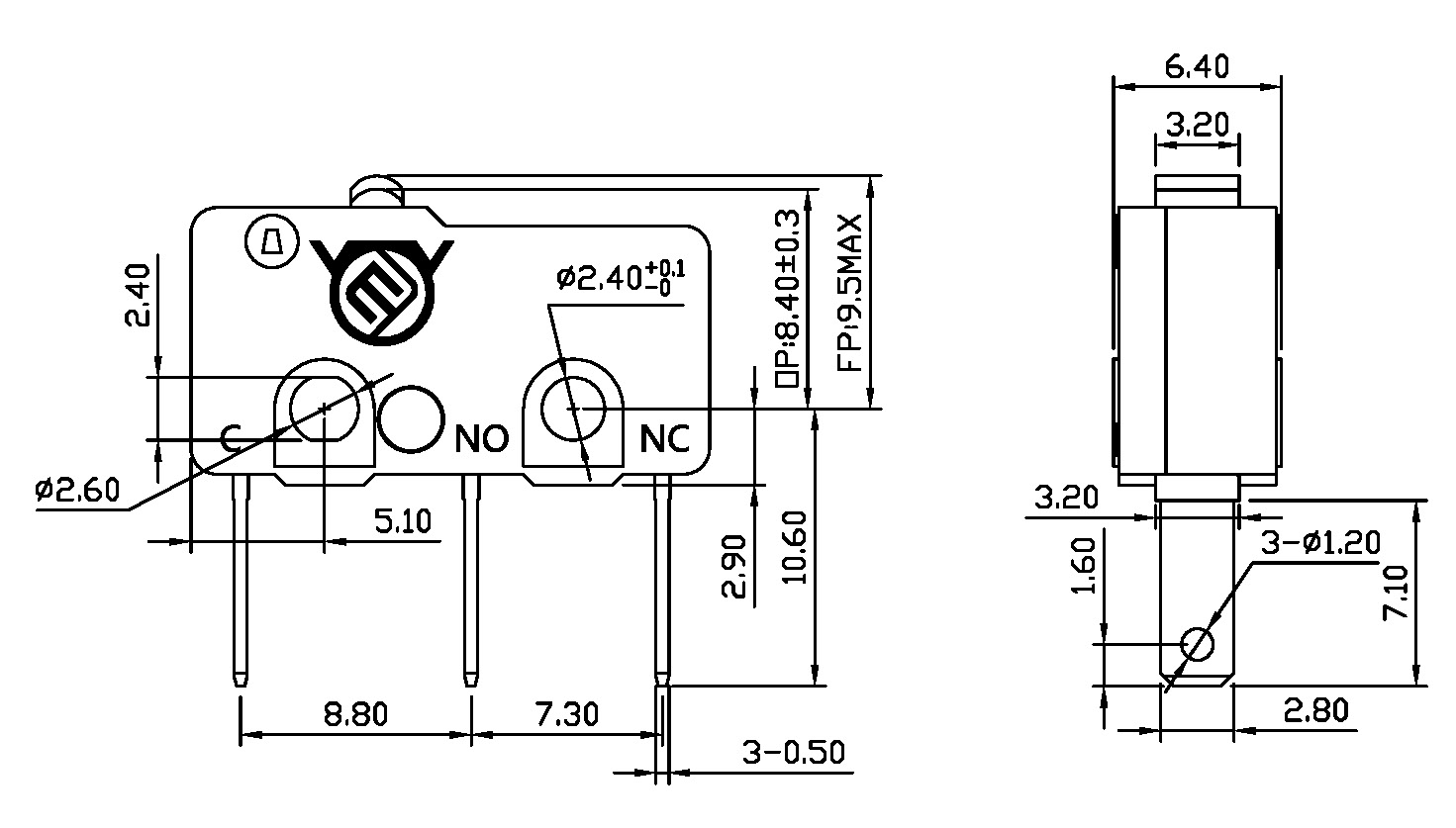

| Proudcts | Dimensions | Circuit Diagram |
| Pad Layout | ||
 |
 |
 |
